太赫兹波片 THz 波片 Waveplate

更新：2025-05-09 17:35:08??????点击：

品牌：???Tydex
型号：???THz waveplate

产品介绍

太赫兹波片 THz 波片 Waveplate

产品简介
偏振测定技术在分析THz辐射中（如双折射、空间/频率模式以及轮廓等）是非常重要的，其中关键的器件就是可以识别以及测试偏振态的偏振调试器。

Tydex提供的THz波片由双折射材料制成，用于改变THz辐射的偏振态。波片通过改变垂直偏振分量和水平偏振分量之间的相位差实现改变入射光偏振态的目的。常规波片类型主要有λ/2波片（半波片）和λ/4波片（四分之一太赫兹波片），λ/2太赫兹波片提供π的相位延迟，λ/4太赫兹波片提供π/2的相位延迟。半波片可以改变线偏振态入射光的偏振方向，四分之一太赫兹波片可以将入射的线偏振光改变为圆偏光或椭圆偏光。偏振方向沿着波片轴时，太赫兹波片则不会改变入射光的偏振态。

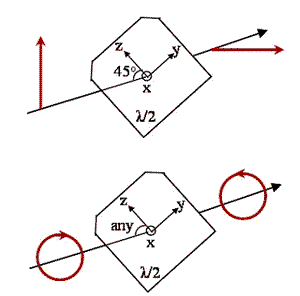

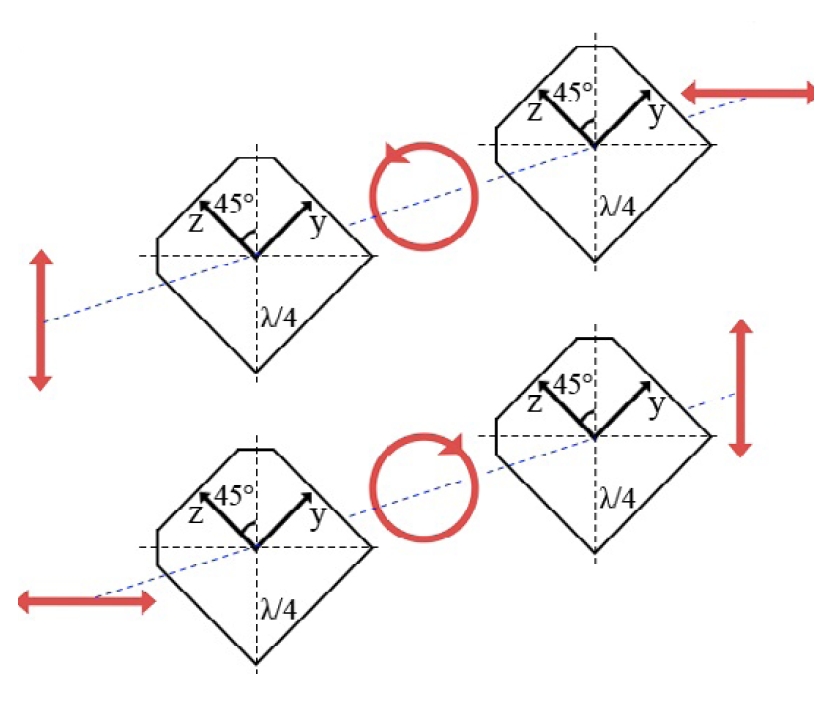

λ/2太赫兹波片原理 λ/4太赫兹波片原理

参数规格：

材料	THz grade crystal quartz
方向	X-cut
方向误差	± arc.min 10
尺寸误差	± 0.25mm
通光孔径	≥ 90%
平行度	arc.min 5
表面质量	scr/dig 60/40
总波失真TWD,λ@633nm	1/2
波片类型	1/2、1/4、1/2&1/4 分段波片(径向偏振光)
标准尺寸	20×20mm 、50×50mm
最大尺寸	60×60mm

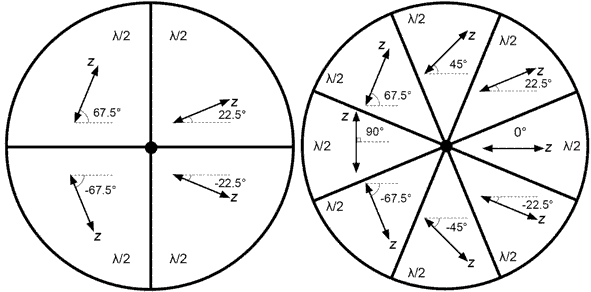

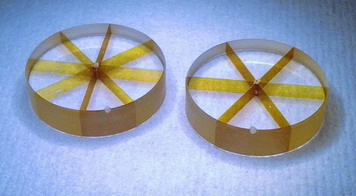

分段太赫兹波片

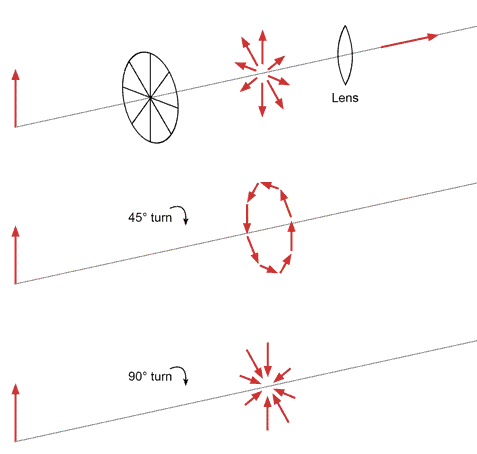

太赫兹分段波片由几个半波片组成，可以获得径向和方位角向偏振光（radial and azimuthal polarization）。

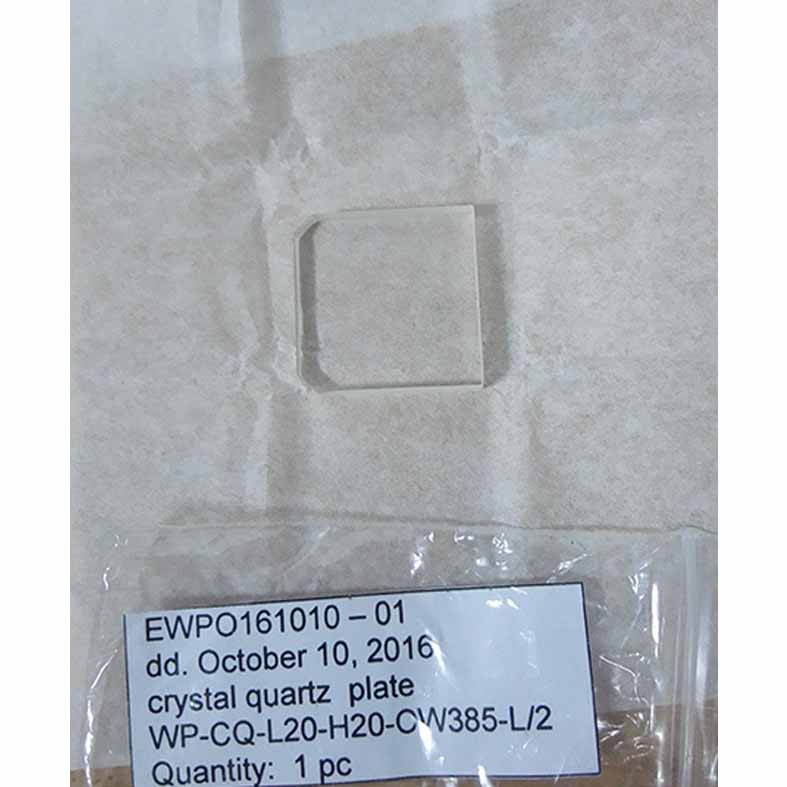

太赫兹波片实物图

太赫兹波片型号

类型	操作波长（um）	相位延迟	尺寸(mm)	表面精度scr/dig	型号
plano-plano	29.0	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW29-L/2
plano-plano	29.5	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW29.5-L/2
plano-plano	30.5	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW30.5-L/2
plano-plano	32.3	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW32.3-L/2
plano-plano	35.0	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW35-L/2
plano-plano	36.4	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW36.4-L/2
plano-plano	38.3	λ/2	D50	60/40	WP-CQ-D50-OW38.3-L/2
plano-plano	46.3	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW46.3-L/2
plano-plano	46.4	λ/2	50 x 50	60/40	WP-CQ-L50-H50-OW46.4-L/2
plano-plano	47.0	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW47-L/2
plano-plano	47.66	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW47.66-L/2
plano-plano	47.85	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW47.85-L/2
plano-plano	51.7	λ/2	D50.8	60/40	WP-CQ-D50.8-OW51.7-L/2
plano-plano	54.6	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW54.6-L/2
plano-plano	55.5	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW55.5-L/2
plano-plano	56.4	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW56.4-L/2
plano-plano	56.5	λ/2	30 x 30	60/40	WP-CQ-L30-H30-OW56.5-L/2
plano-plano	58.5	λ/2	D25.4	60/40	WP-CQ-D25.4-OW58.5-L/2
plano-plano	58.5	λ/2	D47	60/40	WP-CQ-D47-OW58.5-L/2
plano-plano	58.5	λ/2	50 х 50	60/40	WP-CQ-L50-H50-OW58.5-L/2
plano-plano	60.2	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW60.2-L/2
plano-plano	62.2	λ/2	D25	-	WP-CQ-D25-OW62.2-L/2
plano-plano	63.0	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW63-L/2
plano-plano	64.5	λ/2	D25.4	60/40	WP-CQ-D25.4-OW64.5-L/2
plano-plano	65.0	λ/2	30 x 30	60/40	WP-CQ-L30-H30-OW65-L/2
plano-plano	65.7	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW65.7-L/2
plano-plano	72.2	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW195-L/2
plano-plano	74.0	λ/2	50 x 50	60/40	WP-CQ-L50-H50-OW74-L/2
plano-plano	75.0	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW75-L/2
plano-plano	75.0	λ/2	50 x 50	60/40	WP-CQ-L50-H50-OW50-L/2
plano-plano	76.0	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW76-L/2
plano-plano	76.0	λ/2	30 x 30	60/40	WP-CQ-L30-H30-OW76-L/2
plano-plano	76.0	λ/2	50 x 50	60/40	WP-CQ-L50-H50-OW76-L/2
plano-plano	77.5	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW77.5-L/2
plano-plano	78.0	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW78-L/2
plano-plano	78.0	λ/2	30 x 30	60/40	WP-CQ-L30-H30-OW78-L/2
plano-plano	83.5	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW83.5-L/2
plano-plano	84.0	λ/2	50 x 50	60/40	WP-CQ-L50-H50-OW84-L/2
plano-plano	86.5	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW86.5-L/2
plano-plano	87.0	λ/2	D25.4	60/40	WP-CQ-D25.4-OW87-L/2
plano-plano	87.5	λ/2	50 x 50	60/40	WP-CQ-L50-H50-OW87.5-L/2
plano-plano	88.2	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW88.2-L/2
plano-plano	88.2	λ/2	30 x 30	60/40	WP-CQ-L30-H30-OW88.2-L/2
plano-plano	90.5	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW90.5-L/2
plano-plano	90.5	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW90.5-L/2
plano-plano	90.5	λ/2	50 x 50	60/40	WP-CQ-L50-H50-OW90.5-L/2
plano-plano	95.0	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW95-L/2
plano-plano with special orientation	95.0	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW95-L/2
plano-plano	95.1	λ/2	60 x 60	60/40	WP-CQ-L60-H60-OW95.1-L/2
plano-plano	99.4	λ/2	50 x 50	60/40	WP-CQ-L50-H50-OW99.4-L/2
plano-plano	99.4	λ/2	D50	60/40	WP-CQ-D50-OW99.4-L/2
plano-plano, dr. holes	99.7	λ/2	D50	60/40	WP-CQ-D50-OW118.8-L/4
plano-plano	100.0	λ/2	D25	60/40	WP-CQ-D25-OW100-L/2
plano-plano	100.0	λ/2	D25	60/40	WP-CQ-D25-OW100-L/2-С
plano-plano	100.0	λ/2	D25.4	60/40	WP-CQ-D25-OW100-L/2
plano-plano	100.0	λ/2	D25.4	60/40	WP-CQ-D25-OW100-L/2-С
plano-plano	100.0	λ/2	60 x 60	60/40	WP-CQ-L60-H60-OW100-L/2
plano-plano	102.0	λ/2	50 x 50	60/40	WP-CQ-L50-H50-OW102-L/2
plano-plano	103.5	λ/2	D25.4	60/40	WP-CQ-D25.4-OW103.5-L/2
plano-plano	103.5	λ/2	D47	60/40	WP-CQ-D47-OW103.5-L/2
plano-plano	103.5	λ/2	50 х 50	60/40	WP-CQ-L50-H50-OW103.5-L/2
plano-plano	106.0	λ/2	D50	80/50	WP-CQ-D50-OW106-L/2
plano-plano	106.0	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW106-L/2
plano-plano	112.1	λ/2	50.8	60/40	WP-CQ-D50.8-OW112.1-L/2
plano-plano	118.0	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW118-L/2
plano-plano	118.0	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW118-L/2-C
plano-plano	118.6	λ/2	50 x 50	60/40	WP-CQ-L50-H50-OW118.6-L/2
plano-plano	118.6	λ/2	50 x 50	60/40	WP-CQ-L50-H50-OW118.6-L/2-C
plano-plano	119	λ/2	D50	60/40	WP-CQ-D50-OW119-L/2
plano-plano	119	λ/2	50 x 50	60/40	WP-CQ-L50-H50-OW119-L/2
plano-plano	123.5	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW123.5-L/2
plano-plano	129.6	λ/2	50 x 50	60/40	WP-CQ-L50-H50-OW129.6-L/2
plano-plano	140.0	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW140-L/2
plano-plano	143.0	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW143-L/2
plano-plano	146.5	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW146.5-L/2
plano-plano	148.0	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW148-L/2
plano-plano	148.0	λ/2	25.4 x 25.4	60/40	WP-CQ-L25.4-H25.4-OW148-L/2
plano-plano	148.0	λ/2	30 x 30	60/40	WP-CQ-L30-H30-OW148-L/2
plano-plano	155.0	λ/2	D25.4	60/40	WP-CQ-D25.4-OW155-L/2
plano-plano	155.0	λ/2	D47	60/40	WP-CQ-D47-OW155-L/2
plano-plano	155.0	λ/2	50 х 50	60/40	WP-CQ-L50-H50-OW155-L/2
plano-plano	160.5	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW160.5-L/2
plano-plano	169.2	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW169.2-L/2
plano-plano	172.4	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW172.4-L/2
plano-plano	174.0	λ/2	D25.4	60/40	WP-CQ-D25.4-OW174-L/2
plano-plano	174.0	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW174-L/2
plano-plano	174.0	λ/2	50 x 50	60/40	WP-CQ-L50-H50-OW174-L/2
plano-plano	177.0	λ/2	30 x 30	60/40	WP-CQ-L30-H30-OW173-L/2
plano-plano	186.0	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW186-L/2
plano-plano	192.0	λ/2	50 x 50	60/40	WP-CQ-L50-H50-OW192-L/2
plano-plano	195.0	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW195-L/2
plano-plano	200.0	λ/2	50 x 50	60/40	WP-CQ-L50-H50-OW200-L/2
plano-plano segmented	200	λ/2	D50	80/50	WP (8S)-CQ-D50-OW200-L/2
plano-plano	202.0	λ/2	50 x 50	60/40	WP-CQ-L50-H50-OW202-L/2
plano-plano	203.0	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW203-L/2
plano-plano	206.0	λ/2	50 x 50	60/40	WP-CQ-L50-H50-OW206-L/2
plano-plano	210.5	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW210.5-L/2
plano-plano	229	λ/2	20 x 20	80/50	WP-CQ-L20-H20-OW229-L/2
plano-plano	242.0	λ/2	50 x 50	60/40	WP-CQ-L50-H50-OW242-L/2
plano-plano	250.0	λ/2	50 x 50	60/40	WP-CQ-L50-H50-OW250-L/2
plano-plano	251.5	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW251.5-L/2
plano-plano	251.5	λ/2	30 x 30	60/40	WP-CQ-L30-H30-OW251.5-L/2
plano-plano	263.0	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW263-L/2
plano-plano	263.0	λ/2	50 x 50	60/40	WP-CQ-L50-H50-OW263-L/2
plano-plano	280.0	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW280-L/2
plano-plano with special orientation	280.0	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW280-L/2
plano-plano with special orientation	280.0	λ/2	20 x 20	80/50	WP-CQ-L20-H20-OW280-L/2
plano-plano	282.0	λ/2	60 x 60	60/40	WP-CQ-L60-H60-OW282-L/2
plano-plano	288.0	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW288-L/2
plano-plano	298.0	λ/2	50 x 50	60/40	WP-CQ-L50-H50-OW298-L/2
plano-plano, dr. holes	298.0	λ/2	D50	60/40	WP-CQ-D50-OW118.8-L/4
plano-plano	300.0	λ/2	20 x 20	60/40	WP-CQ-L20-20-OW300-L/2
plano-plano	300.0	λ/2	50 x 50	60/40	WP-CQ-L50-H50-OW300-L/2
plano-plano	300.0	λ/2	50 x 50	80/50	WP-CQ-L50-H50-OW300-L/2
plano-plano	300.0	λ/2	50 x 50	80/50	WP(8S)-CQ-L50-H50-OW300-L/2
plano-plano	300.0	λ/2	60 x 60	60/40	WP-CQ-L60-H60-OW300-L/2
plano-plano	308.0	λ/2	D25.4	60/40	WP-CQ-D25.4-OW308-L/2
plano-plano	308.0	λ/2	D47	60/40	WP-CQ-D47-OW308-L/2
plano-plano	308.0	λ/2	50 х 50	60/40	WP-CQ-L50-H50-OW308-L/2
plano-plano	313.0	λ/2	20 x 20	60/40	WP-CQ-L20-20-OW313-L/2
plano-plano	329.0	λ/2	50.8	60/40	WP-CQ-D50.8-OW329-L/2
plano-plano	334.0	λ/2	20 х 20	60/40	WP-CQ-L20-H20-OW334-L/2
plano-plano	375.0	λ/2	20 х 20	60/40	WP-CQ-L20-H20-OW375-L/2
plano-plano	385.0	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW385-L/2
plano-plano	385.0	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW385-L/2
plano-plano	390.0	λ/2	50 x 50	60/40	WP-CQ-L50-H50-OW390-L/2
plano-plano	400.0	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW400-L/2
plano-plano	432.0	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW432-L/2
plano-plano	437.0	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW437-L/2
plano-plano	496.0	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW496-L/2
plano-plano	500.0	λ/2	D25	60/40	WP-CQ-D25-OW500-L/2
plano-plano	500.0	λ/2	D25	80/50	WP-CQ-D25-OW500-L/2
plano-plano	500.0	λ/2	D25.4	60/40	WP-CQ-D25.4-OW500-L/2
plano-plano	500.0	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW500-L/2
plano-plano	500.0	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW500-L/2
plano-plano segmented	500.0	λ/2	50 x 50	60/40	WP-CQ-L50-H50-OW500-L/2
plano-plano segmented	500.0	λ/2	50 x 50	80/50	WP-CQ-L50-H50-OW500-L/2
plano-plano	577.0	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW577-L/2
plano-plano	600.0	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW600-L/2
plano-plano	600.0	λ/2	20 x 20	80/50	WP-CQ-L20-H20-OW600-L/2
plano-plano	600.0	λ/2	50 x 50	60/40	WP-CQ-L50-H50-OW600-L/2
plano-plano	600.0	λ/2	50 x 50	80/50	WP-CQ-L50-H50-OW600-L/2
plano-plano segmented	600.0	λ/2	50 x 50	80/50	WP (8S)-CQ-L50-H50-OW600-L/2
plano-plano	600.0	λ/2	60 x 60	60/40	WP-CQ-L60-H60-OW600-L/2
plano-plano	750.0	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW750-L/2
plano-plano	750.0	λ/2	50 x 50	60/40	WP-CQ-L50-H50-OW750-L/2
plano-plano	950.0	λ/2	50 x 50	60/40	WP-CQ-L50-H50-OW950-L/2
plano-plano	0.3THz	λ/2	D25	80/50	WP(8S)-CQ-D25-OW0.3THz-L/2
plano-plano	1000.0	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW1000-L/2
plano-plano	1000.0	λ/2	50 x 50	60/40	WP-CQ-L50-H50-OW1000-L/2
plano-plano	1028.0	λ/2	D25.4	60/40	WP-CQ-D25.4-OW1028-L/2
plano-plano	1034.0	λ/2	D20	60/40	WP-CQ-D20-OW1034-L/2
plano-plano	1034.0	λ/2	D20	80/50	WP-CQ-D20-OW1034-L/2
plano-plano	1034.0	λ/2	D50	60/40	WP-CQ-D50-OW1034-L/2
plano-plano segmented	1070.7	λ/2	D50.8	80/50	WP-CQ-D50.8-OW1070.7-L/2
plano-plano	1071.5	λ/2	50 x 50	60/40	WP-CQ-L50-H50-OW1071.5-L/2
plano-plano	1100.0	λ/2	20 x 20	60/40	WP-CQ-L20-H20-OW1100-L/2
plano-plano	1382.0	λ/2	50 x 50	60/40	WP-CQ-L50-H50-OW1382-L/2
plano-plano	1475.0	λ/2	D60	60/40	WP-CQ-D60-OW1475-L/2
plano-plano	1499.0	λ/2	28 х 28	60/40	WP-CQ-D60-OW1499-L/2
plano-plano	0.3THz	λ/2	D25	80/50	WP(8S)-CQ-D25-OW0.3THz-L/2
plano-plano	1.2THz	λ/2	D25	80/50	WP(8S)-CQ-D25-OW1.2THz-L/2
plano-plano	32.3	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW32.3-L/4
plano-plano	32.3	λ/4	30 x 30	60/40	WP-CQ-L30-H30-OW32.3-L/4
plano-plano	35.0	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW35-L/4
plano-plano	37.0	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW37-L/4
plano-plano	39.0	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW39-L/4
plano-plano	41.2	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW41.2-L/4
plano-plano	45.0	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW45-L/4
plano-plano	46.4	λ/4	D50	60/40	WP-CQ-D50-OW46.4-L/4
plano-plano	47.0	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW47-L/4
plano-plano	50	λ/4	50 x 50	60/40	WP-CQ-L20-H20-OW50-L/4
plano-plano	55.0	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW55-L/4
plano-plano	55.3	λ/4	50 x 50	60/40	WP-CQ-L50-H50-OW55.3-L/4
plano-plano	57.15	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW57.15-L/4
plano-plano	61.5	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW61.5-L/4
plano-plano	62.2	λ/4	D25	-	WP-CQ-D25-OW62.2-L/4
plano-plano	62.5	λ/4	D50.8	60/40	WP-CQ-D50.8-OW62.5-L/4
plano-plano	63.4	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW63.4-L/4
plano-plano	64.9	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW64.9-L/4
plano-plano	64.9	λ/4	30 x 30	60/40	WP-CQ-L30-H30-OW64.9-L/4
plano-plano	67.3	λ/4	D25.4	60/40	WP-CQ-D25.4-OW67.3-L/4
plano-plano	67.3	λ/4	D47	60/40	WP-CQ-D47-OW67.3-L/4
plano-plano	67.3	λ/4	50 х 50	60/40	WP-CQ-L50-H50-OW67.3-L/4
plano-plano	68	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW68-L/4
plano-plano	70	λ/4	D50.8	60/40	WP-CQ-D50.8-OW70-L/4
plano-plano	73.0	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW73-L/4
plano-plano	76.0	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW76-L/4
plano-plano	76.0	λ/4	30 x 30	60/40	WP-CQ-L30-H30-OW76-L/4
plano-plano	81	λ/4	D25.4	60/40	WP-CQ-D25.4-OW81-L/4
plano-plano	82.4	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW82.4-L/4
plano-plano	83.5	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW83.5-L/4
plano-plano	84.8	λ/4	50 x 50	60/40	WP-CQ-L50-H50-OW84.8-L/4
plano-plano	85.1	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW85.1-L/4
plano-plano	85.7	λ/4	D50.8	60/40	WP-CQ-D50.8-OW85.7-L/4
plano-plano	86.5	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW86.5-L/4
plano-plano	87.5	λ/4	50 x 50	60/40	WP-CQ-L50-H50-OW87.5-L/4
plano-plano	89.6	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW89.6-L/4
plano-plano	90.0	λ/4	D50.8	60/40	WP-CQ-D50.8-OW90-L/4
plano-plano	90.5	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW90.5-L/4
plano-plano	90.5	λ/4	20 x 20	80/50	WP-CQ-L20-H20-OW90.5-L/4
plano-plano	92.5	λ/4	D50.8	60/40	WP-CQ-D50.8-OW92.5-L/4
plano-plano	96.2	λ/4	D25.4	60/40	WP-CQ-D25.4-OW96.2-L/4
plano-plano	96.5	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW96.5-L/4
plano-plano	97	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW97-L/4
plano-plano	97.5	λ/4	50 x 50	60/40	WP-CQ-L50-H50-OW97.5-L/4
plano-plano	100	λ/4	D25.4	60/40	WP-CQ-D25.4-OW100-L/4
plano-plano	100	λ/4	D50.8	60/40	WP-CQ-D50.8-OW100-L/4
plano-plano	100	λ/4	D50.8	60/40	WP-CQ-D50.8-OW100-L/4
plano-plano	100	λ/4	50 x 50	60/40	WP-CQ-L50-H50-OW100-L/4
plano-plano	100	λ/4	60 x 60	60/40	WP-CQ-L60-H60-OW100-L/4
plano-plano	102.0	λ/4	50 x 50	60/40	WP-CQ-L50-H50-OW102-L/4
plano-plano	102.7	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW102.7-L/4
plano-plano	102.7	λ/4	30 x 30	60/40	WP-CQ-L30-H30-OW102.7-L/4
plano-plano	106.0	λ/4	D50	80/50	WP-CQ-D50-OW106-L/4
plano-plano	106.0	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW106-L/4
plano-plano	106.0	λ/4	50 x 50	60/40	WP-CQ-L50-H50-OW106-L/4
plano-plano	112.0	λ/4	60 x 60	60/40	WP-CQ-L60-H60-OW112-L/4
plano-plano	111.5	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW111.5-L/4
plano-plano with special orientation	111.5	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW111.5-L/4
plano-plano	115	λ/4	D25.4	60/40	WP-CQ-D25.4-OW115-L/4
plano-plano	118	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW118-L/4
plano-plano	118.6	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW118.6-L/4
plano-plano	118.6	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW118.6-L/4-C
plano-plano	118.6	λ/4	50 x 50	60/40	WP-CQ-L50-H50-OW118.6-L/4
plano-plano	118.6	λ/4	50 x 50	60/40	WP-CQ-L50-H50-OW118.6-L/4-C
plano-plano, dr. holes	118.8	λ/4	D50	60/40	WP-CQ-D50-OW118.8-L/4
plano-plano	119	λ/4	D50	60/40	WP-CQ-D50-OW119-L/4
plano-plano	119	λ/4	50 x 50	60/40	WP-CQ-L50-H50-OW119-L/4
plano-plano	120.0	λ/4	60 x 60	60/40	WP-CQ-L60-H60-OW120-L/4
plano-plano	120.5	λ/4	D50.8	60/40	WP-CQ-D50.8-OW120.5-L/4
plano-plano	122.0	λ/4	50 x 50	60/40	WP-CQ-L50-H50-OW122-L/4
plano-plano	124.0	λ/4	D25.4	60/40
plano-plano	124.0	λ/4	D47	60/40	WP-CQ-D47-OW124-L/4
plano-plano	124.0	λ/4	50 х 50	60/40	WP-CQ-L50-H50-OW124-L/4
plano-plano	126.5	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW126.5-L/4
plano-plano	133.0	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW133-L/4
plano-plano	136.0	λ/4	D50.8	60/40	WP-CQ-D50.8-OW136-L/4
plano-plano	142.5	λ/4	30 x 30	60/40	WP-CQ-L30-H30-OW142.5-L/4
plano-plano	148.0	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW148-L/4
plano-plano	148.0	λ/4	30 x 30	60/40	WP-CQ-L30-H30-OW148-L/4
plano-plano	150.0	λ/4	D50.8	60/40	WP-CQ-D50.8-OW150-L/4
plano-plano	150.0	λ/4	50 x 50	60/40	WP-CQ-L50-H50-OW150-L/4
plano-plano	156.0	λ/4	50 x 50	60/40	WP-CQ-L50-H50-OW156-L/4
plano-plano	163.0	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW163-L/4
plano-plano	169.0	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW169-L/4
plano-plano	169.0	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW169-L/4
plano-plano	175.2	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW175.2-L/4
plano-plano	177.0	λ/4	D25.4	80/50	WP-CQ-D25.4-OW177-L/4
plano-plano	177.0	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW177-L/4
plano-plano	189.6	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW189.6-L/4
plano-plano	195.0	λ/4	D50	60/40	WP-CQ-D50-OW195-L/4
plano-plano	200.7	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW200.7-L/4
plano-plano	202.0	λ/4	D25.4	60/40	WP-CQ-D25.4-OW202-L/4
plano-plano	202.0	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW202-L/4
plano-plano	202.0	λ/4	50 x 50	60/40	WP-CQ-L50-H50-OW202-L/4
plano-plano	204.0	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW204-L/4
plano-plano	214.6	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW214.6-L/4
plano-plano	217.0	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW217-L/4
plano-plano	222.0	λ/4	50 x 50	60/40	WP-CQ-L50-H50-OW222-L/4
plano-plano	232.0	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW232-L/4
plano-plano	234.0	λ/4	50 x 50	60/40	WP-CQ-L50-H50-OW234-L/4
plano-plano	250.0	λ/4	19 x 19	60/40	WP-CQ-L19-H19-OW250-L/4
plano-plano	268.6	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW268.6-L/4
plano-plano	280.0	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW280-L/4
plano-plano	292.0	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW292-L/4
plano-plano	292.0	λ/4	30 x 30	60/40	WP-CQ-L30-H30-OW292-L/4
plano-plano	300.0	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW300-L/4
plano-plano	300.0	λ/4	D25.4	60/40	WP-CQ-D25.4-OW300-L/4
plano-plano	300.0	λ/4	D47	60/40	WP-CQ-D47-OW300-L/4
plano-plano	300.0	λ/4	50 х 50	60/40	WP-CQ-L50-H50-OW300-L/4
plano-plano	313.0	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW313-L/4
plano-plano	326.0	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW326-L/4
plano-plano	343.0	λ/4	30 x 30	60/40	WP-CQ-L30-H30-OW343-L/4
plano-plano	385.0	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW385-L/4
plano-plano	375.0	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW375-L/4
plano-plano	400.0	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW400-L/4
plano-plano	400.0	λ/4	20 x 20	80/50	WP-CQ-L20-H20-OW400-L/4
plano-plano	411.0	λ/4	50 x 50	60/40	WP-CQ-L50-H50-OW411-L/4
plano-plano	425.0	λ/4	50 x 50	60/40	WP-CQ-L50-H50-OW425-L/4
plano-plano	428.0	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW428-L/4
plano-plano	437.0	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW437-L/4
plano-plano	479.0	λ/4	50 x 50	60/40	WP-CQ-L50-H50-OW479-L/4
plano-plano	494.0	λ/4	50 x 50	60/40	WP-CQ-L50-H50-OW494-L/4
plano-plano	496.0	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW496-L/4
plano-plano	496.0	λ/4	30 x 30	60/40	WP-CQ-L30-H30-OW496-L/4
plano-plano	500.0	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW500-L/4
plano-plano	500.0	λ/4	50 x 50	60/40	WP-CQ-L50-H50-OW500-L/4
plano-plano	513.0	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW513-L/4
plano-plano	513.0	λ/4	50 x 50	60/40	WP-CQ-L50-H50-OW513-L/4
plano-plano	573.0	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW573-L/4
plano-plano with special orientation	573.0	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW573-L/4
plano-plano	575.0	λ/4	60 x 60	60/40	WP-CQ-L60-H60-OW575-L/4
plano-plano	600.0	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW600-L/4
plano-plano	600.0	λ/4	D25.4	60/40	WP-CQ-D25.4-OW600-L/4
plano-plano	600.0	λ/4	D47	60/40	WP-CQ-D47-OW600-L/4
plano-plano	600.0	λ/4	50 х 50	60/40	WP-CQ-L50-H50-OW600-L/4
plano-plano	600.0	λ/4	60 x 60	60/40	WP-CQ-L60-H60-OW600-L/4
plano-plano	617.0	λ/4	50 x 50	60/40	WP-CQ-L50-H50-OW617-L/4
plano-plano, dr. holes	635	λ/4	D50	60/40	WP-CQ-D50-OW118.8-L/4
plano-plano	642.0	λ/4	60 x 60	60/40	WP-CQ-L60-H60-OW642-L/4
plano-plano	655.0	λ/4	50 x 50	60/40	WP-CQ-L50-H50-OW655-L/4
plano-plano	684.0	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW684-L/4
plano-plano	700.0	λ/4	D47	60/40	WP-CQ-D47-OW700-L/4
plano-plano	700.0	λ/4	D47	80/50	WP-CQ-D47-OW700-L/4
plano-plano	736.0	λ/4	D50.8	60/40	WP-CQ-D50.8-OW736-L/4
plano-plano	750.0	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW750-L/4
plano-plano	836.0	λ/4	50 x 50	60/40	WP-CQ-L50-H50-OW836-L/4
plano-plano	857.0	λ/4	D50	60/40	WP-CQ-D50-OW857-L/4
plano-plano	880.0	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW880-L/4
plano-plano	906.0	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW906-L/4
plano-plano	909.0	λ/4	D50.8	80/50	WP-CQ-D50.8-OW909-L/4
plano-plano	940.0	λ/4	50 x 50	60/40	WP-CQ-L50-H50-OW940-L/4
plano-plano	950.0	λ/4	50 x 50	60/40	WP-CQ-L50-H50-OW950-L/4
plano-plano	996.0	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW996-L/4
plano-plano	1000.0	λ/4	D25.4	60/40	WP-CQ-D25.4-OW1000-L/4
plano-plano	1000.0	λ/4	20 x 20	60/40	WP-CQ-L20-H20-OW1000-L/4
plano-plano	1000.0	λ/4	50 x 50	60/40	WP-CQ-L50-H50-OW1000-L/4
plano-plano	1028.0	λ/4	D25.4	60/40	WP-CQ-D25.4-OW1028-L/4
plano-plano	1034.0	λ/4	D20	60/40	WP-CQ-D20-OW1034-L/4
plano-plano	1034.0	λ/4	D50	60/40	WP-CQ-D50-OW1034-L/4
plano-plano	1071.5	λ/4	50 x 50	60/40	WP-CQ-L50-H50-OW1071.5-L/4
plano-plano	1100.0	λ/4	50 x 50	60/40	WP-CQ-L50-H50-OW1100-L/4
plano-plano	1100.0	λ/4	50 x 50	80/50	WP-CQ-L50-H50-OW1100-L/4
plano-plano	1225.0	λ/4	D45	60/40	WP-CQ-D45-OW1225-L/4
plano-plano	1382.0	λ/4	50 x 50	60/40	WP-CQ-L50-H50-OW1382-L/4
plano-plano, mounted in D25.4 holder	0.405	λ/2	D9.9	10/5	WP-CQ-D25.4-T10-C
plano-plano, mounted in D25.4 holder	0.405	λ/2	D9.9	10/5	WP-CQ-D25.4-T10-C
plano-plano, mounted in D25.4 holder	0.405	λ/2	D9.9	10/5	WP-CQ-D25.4-T10-C
plano-plano	-	-	D40	60/40	WP-CQ-D40-T1.588
plano-plano	-	-	D40	80/50	WP-CQ-D40-T1.588
plano-plano	-	-	20 x 20	60/40	WP-CQ-L20-H20-T0.754
plano-plano	-	-	20 x 20	100/80	WP-CQ-L20-H20-T0.754
plano-plano	-	-	D25.4	60/40	WP-CQ-D25.4-T10.638

资料下载

>>Download THz Waveplates Datasheet (PDF, 60 KB)

更多太赫兹元件相关产品

>> 太赫兹偏振片 HDPE

上海九游会j9官方网站光电技术有限公司
地址：上海市闵行区剑川路955号1108室
电话：021-62209657 021-54843093 传真：021-54843093
邮箱：sales@eachwave.com 网站：www.eachwave.com
QQ：2920058626 微信：jesse-xue

更多产品
