产品介绍 >>可饱和输出耦合器SOC工作原理？

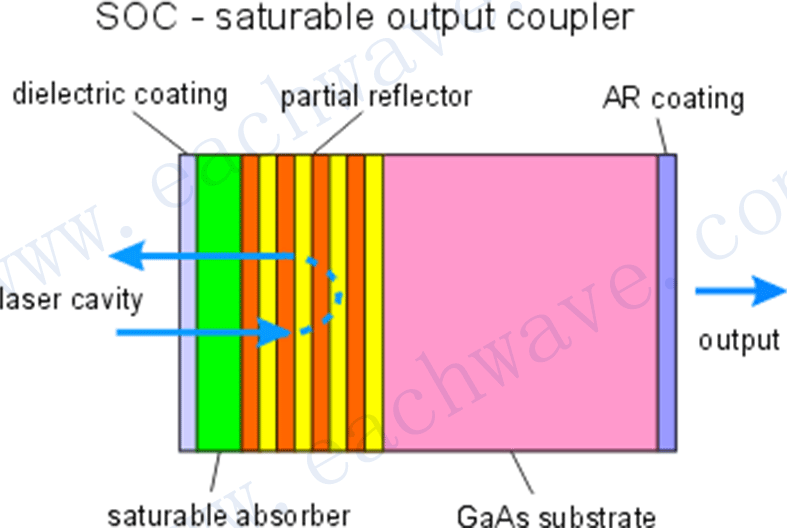

利用一个可饱和输出耦合器SOC，就可以简便建立一个自启动的被动锁模二极管泵浦固体激光器。可饱和输出耦合器是将可饱和吸收镜SAM和一个输出耦合器结合在一起。
规格参数
SOC - saturable output coupler λ = 1040 nm
Part No. Description Data PDF SOC-1040-2-3-1ps-x SOC: λ = 1040 nm, absorptance 2 %, , transmittance 3 %, relaxation time ~ 1 ps, Δ R = 1.2 %, relaxation time 1 ps SOC-1040-3-0.4-1ps-x SOC: λ = 1040 nm, absorptance 3 %, transmittance 0.4 %, relaxation time ~ 1 ps, Δ R = 1.8 %, relaxation time 1 ps SOC-1040-3-4-1ps-x SOC: λ = 1040 nm, absorptance 3 %, transmittance 4 %, relaxation time ~ 1 ps, Δ R = 1.8 %, relaxation time 1 ps SOC-1040-5-5-1ps-x SOC: λ = 1040 nm, absorptance 5 %, transmittance 5 %, relaxation time ~ 1 ps, Δ R = 3 %, relaxation time 1 ps SOC-1040-6-0.5-1ps-x SOC: λ = 1040 nm, absorptance 6 %, transmittance 0.5 %, relaxation time ~ 1 ps, Δ R = 3.5 %, relaxation time 1 ps SOC-1040-6-2-1ps-x SOC: λ = 1040 nm, absorptance 6 %, transmittance 2 %, relaxation time ~ 1 ps, Δ R = 3.5 %, relaxation time 1 ps SOC-1040-7-2-1ps-x SOC: λ = 1040 nm, absorptance 7 %, transmittance 2 %, relaxation time ~ 1 ps, Δ R = 4 %, relaxation time 1 ps SOC-1040-8-0.6-1ps-x SOC: λ = 1040 nm, absorptance 8 %, transmittance 0.6 %, relaxation time ~ 1 ps, Δ R = 5 %, relaxation time 1 ps SOC-1040-8-6-15ps-x SOC: λ = 1040 nm, absorptance 8 %, transmittance 6 %, relaxation time ~ 15 ps, Δ R = 4.5 %, relaxation time 15 ps SOC-1040-9-9-1ps-x SOC: λ = 1040 nm, absorptance 9 %, transmittance 9 %, Δ R = 5 %, relaxation time 1 ps SOC-1040-11-3-1ps-x SOC: λ = 1040 nm, absorptance 11 %, transmittance 3 %, Δ R = 6 %, relaxation time 1 ps SOC-1040-14-10-15ps-x SOC: λ = 1040 nm, absorptance 14 %, transmittance 10 %, Δ R = 7.5 %, relaxation time 15 ps SOC-1040-17-5-1ps-x SOC: λ = 1040 nm, absorptance 17 %, transmittance 5 %, Δ R = 10 %, relaxation time 1 ps SOC-1040-24-19-15ps-x SOC: λ = 1040 nm, absorptance 24 %, transmittance 19 %, Δ R = 9.5 %, relaxation time 15 ps
saturable output coupler with short relaxation time ~ 1 ps
Part No. Description Data PDF SOC-1064-1-1-5ps-x SOC: λ = 1064 nm, absorptance 1 %, transmittance 1 %, relaxation time ~ 5 ps, Δ R = 0.6 %, SOC-1064-1.8-2.2-1ps-x SOC: λ = 1064 nm, absorptance 1.8 %, transmittance 2.2 %, relaxation time ~ 1 ps, Δ R = 1.1 %, SOC-1064-2.0-0.3-1ps-x SOC: λ = 1064 nm, absorptance 2.0 %, transmittance 0.3 %, relaxation time ~ 1 ps , Δ R = 1.2 % SOC-1064-2.7-3.2-1ps-x SOC: λ = 1064 nm, absorptance 2.7 %, transmittance 3.2 %, relaxation time ~ 1 ps , Δ R = 1.7 % SOC-1064-4-0.5-1ps-x SOC: λ = 1064 nm, absorptance 4 %, transmittance 0.5 %, relaxation time ~ 1 ps, Δ R = 2.8 % SOC-1064-7-0.7-1ps-x SOC: λ = 1064 nm, absorptance 7 %, transmittance 0.7 %, relaxation time ~ 1 ps, Δ R = 4 % SOC-1064-8-6-1ps-x SOC: λ = 1064 nm, absorptance 8 %, transmittance 6 %, relaxation time ~ 1 ps, Δ R = 4 %
saturable output coupler with short relaxation time ~ 17 ps
Part No. Description Data PDF SOC-1064-8-8-15ps-x SOC: λ = 1064 nm, absorptance 8 %, transmittance 8 %, relaxation time 15 ps, Δ R = 4.5 % SOC-1064-9-13-17ps-x SOC: λ = 1064 nm, absorptance 9 %, transmittance 13 %, relaxation time 17 ps, Δ R = 6 % SOC-1064-13-12-15ps-x SOC: λ = 1064 nm, absorptance 13 %, transmittance 12 %, relaxation time 15 ps, Δ R = 6.5 % SOC-1064-15-23-17ps-x SOC: λ = 1064 nm, absorptance 15 %, transmittance 23 %, relaxation time 17 ps, Δ R = 8 % SOC-1064-22-19-15ps-x SOC: λ = 1064 nm, absorptance 22 %, transmittance 19 %, relaxation time 15 ps, Δ R = 9.5 %
SOC - saturable output coupler λ = 2000 nm
Saturable output coupler for free space applications. Chip thickness: 625 μm
Part No. Description Data PDF SOC-2000-26-19-1ps-x SOC: λ = 2000 nm, absorptance 26 %, transmittance 19 %, relaxation time ~ 1 ps, Δ R = 15 %, reflectance 55 %, chip thickness: 625 μm SOC-2000-40-28-1ps-x SOC: λ = 2000 nm, absorptance 40 %, transmittance 28 %, relaxation time ~ 1 ps, Δ R = 23 %, reflectance 32 %, chip thickness: 625 μm
Thin saturable output coupler for fiber butt coupling. Chip thickness: 140 μm
Part No. Description Data PDF SOC-2000-26-24-1ps-x-thin SOC: λ = 2000 nm, absorptance 26 %, transmittance 24 %, relaxation time ~ 1 ps, Δ R = 15 %, reflectance 50 %, chip thickness: 140 μm
Part No. description

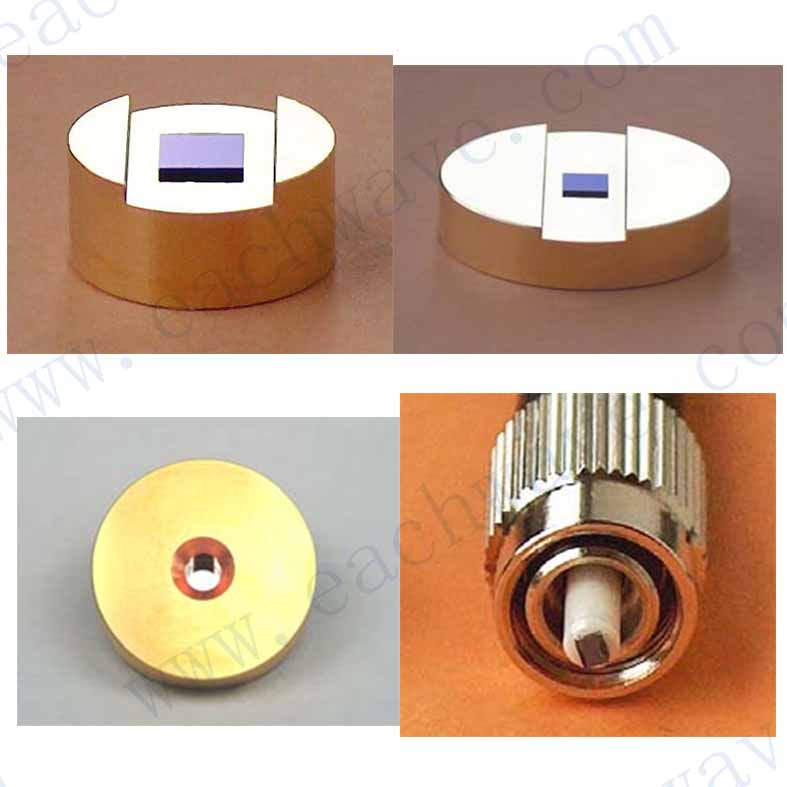

Part No. example Description Data PDF SOC-2000-26-1ps-x S aturable Output Coupler SOC-2000-26-1ps-x working wavelength 2000 nm SOC-2000-26-1ps-x absorptance 26 % SOC-2000-26-1ps-x relaxation time 1 ps SOC-2000-26-1ps-0 unmounted chip, area: 5 mm x 5 mm, chip thickness: 625 ?m SOC-2000-26-1ps-0-thin unmounted chip, area: 1.0 mm x 1.0 mm or 1.3 mm x 1.3 mm, chip thickness: 140 ?m, batch of 5 pieces SOC-2000-26-1ps-12.7 g mounted: glued on a copper heat sink with 12.7 mm ? and 4 mm centre hole, chip thickness: 625 ?m SOC-2000-26-1ps-25.4 g mounted: glued on a copper heat sink with 25.4 mm ? and 4 mm centre hole, chip thickness: 625 ?m SOC-2000-26-1ps-FC/PC mounted on a 1 m monomode fiber cable with FC/PC or other connector type, chip thickness: 140 ?m
